APM Insight Go agent configuration

Learn how to configure the Site24x7 APM Insight Go Agent for monitoring Golang applications.

Install the Go agent

Use this command to install the agent:

./apm-insight-go-agent-install.sh \ -i \ -license_key=license_key\-apps=app_definitions

Options:

Option	Description
-h	Display the help message
-i	Install the agent (required)
-u	Uninstall the agent
-license_key	Your Site24x7 APM Insight license key (required)
-apps	Defines Go applications to monitor (required). Format explained below.

Define applications with -apps

In the installation command shown previously, the -apps parameter requires a list of Go applications to monitor. Define this list with the process names and ports using the format below.

<app_name>=<process_name>:<port1>[,<port2>];<app_name2>=<process_name2>:<port3>

Details:

app_name: Display name for the app in Site24x7
process_name: Exact process name
port: Port(s) used by the application (multiple ports separated by commas)
Separate multiple applications with semicolons

Example:

-apps="my_go_app=my_process:8087;go_retail_app=go_retail:8088,8089"

Example

To monitor your Golang application (go_retail) on ports 8484 and 8483.

Prerequisites

Ensure your Go application (e.g., go_retail) is running.
The required ports are open and available to be monitored (e.g., 8483 and 8484)
You need to have your Site24x7 license key.

Install Site24x7 APMDataExporter using the below command:

wget -O InstallDataExporter.sh
https://staticdownloads.site24x7.com/apminsight/S247DataExporter/linux/InstallDataExporter.sh

sudo -E sh InstallDataExporter.sh -license.key

Download the apm-insight-go-agent-install.sh script using the below command and, ensure the script has execute permissions:

wget https://staticdownloads.site24x7.com/apminsight/agents/golang/linux/amd64/apm-insight-go-agent-install.sh -O apm-insight-go-agent-install.sh

chmod +x apm-insight-go-agent-install.sh

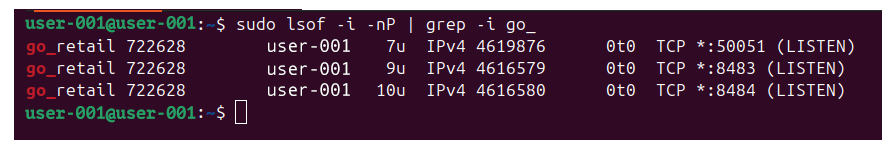

Step 1: Verify running Go applications and ports

First, confirm your Go application is running and listening on the intended ports:

sudo lsof -i -nP | grep -i go_

You should see output similar to:

go_retail 722628 user-001 7u  IPv4 4619876 0t0  TCP *:50051 (LISTEN)
go_retail 722628 user-001 9u  IPv4 4616579 0t0  TCP *:8483  (LISTEN)
go_retail 722628 user-001 10u IPv4 4616580 0t0  TCP *:8484  (LISTEN)

Step 2: Run the installation command

sudo ./apm-insight-go-agent-install.sh \
  -i \
  -license_key=<license_key> \
  -apps="<App_Name>=<Process_Name>:<port1>,<port2>,...;"

Example:

App_Name: Retail_Application
Process_Name: go_retail
Ports: 8484, 8483

The command will be:

sudo ./apm-insight-go-agent-install.sh -i -license_key= -apps="Retail_Application=go_retail:8484,8483;"

Uninstall the Go agent

To uninstall the agent, run the following command:

 ./apm-insight-go-agent-install.sh -u

Supported metrics

The Go agent monitors the following metrics for your application:

Metric	Description
Application Server Response Time	Detailed component-level breakdown of server response times
Apdex	User satisfaction score based on response times
Request Throughput	Number of requests processed per minute
Top 5 Transactions by Avg. Response Time	Transactions with the highest average response time
Web Transactions	Includes count, Apdex, and average response time
Service Map	Visual map with component-level split-up
MySQL queries	Query execution details and response time
Redis queries	Query execution details and response time

Go Agent configurations

Configure the agent to suit your monitoring needs:

Basic configuration profiles

Configuration option	Description
Capture Database SQL Queries	Collects executed SQL queries
Obfuscate SQL Parameters	Hides sensitive SQL parameter values
Stacktrace Threshold for SQLs in Transaction Trace	Sets minimum execution time for stacktrace capture
Display Instance Port Number	Shows instance port in Site24x7 console
Enable Down Alert	Sends alerts if the instance is down
Suppress Instance Alerts	Suppresses alerts for selected instances
Normalize DB Operation Names	Groups similar DB operations
Logging Level	Adjust logging verbosity
Skip URL extensions	Exclude tracking of static resources
Skip transactions	Exclude specific transactions from monitoring
Exclude grouping in transaction name	Prevents transaction name aggregation

Web transactions configuration

Configuration option	Description
Apdex threshold	Defines threshold for Apdex calculation
Sampling factor	Controls the percentage of transactions sampled
Enable transaction tracing	Captures detailed transaction traces
Transaction trace threshold	Minimum response time for trace capture
Track HTTP error codes	List of error codes to monitor
Ignore HTTP error codes	List of error codes to skip
Capture HTTP bytes	Enable/disable capture of HTTP payload sizes

Next steps

After installation, your Go applications will start reporting performance data to the Site24x7 console under APM > Applications.
